Data

Data Description

Data generated in the Lakes_cci project contain the Lakes Essential Climate Variable products at the global scale, covering the period 1992-2022 or part thereof, where and when data quality are appropriate for climate studies. The current datasets are freely available from the ESA Climate Change Initiative's Open Data Portal.

The main characteristics of the dataset are as follows:

• Daily aggregation interval pinned to 12:00:00 UTC.
• Grid format with spatial resolution of 1/120 degrees (near 1 km at the equator).
• Per-lake variables (LWL and LWE) are duplicated into the grid for the area given under the nominal spatial delineation of that lake, derived from its maximum water extent as used for the variables resolved for the whole lakes grid.
• Datum: WGS84
• Extent: -180 to 180 degrees longitude, -90 to 90 degrees latitude, where positive signs point north and east. The pixel coordinate is the centre of the pixel. This results in 21600 grid rows and 43200 grid columns.

The current, latest version of the dataset is citeable as:

Carrea, L.; Crétaux, J.-F.; Liu, X.; Wu, Y.; Bergé-Nguyen, M.; Calmettes, B.; Duguay, C.; Jiang, D.; Merchant, C.J.; Mueller, D.; Selmes, N.; Simis, S.; Spyrakos, E.; Stelzer, K.; Warren, M.; Yesou, H.; Zhang, D. (2024): ESA Lakes Climate Change Initiative (Lakes_cci): Lake products, Version 2.1. NERC EDS Centre for Environmental Data Analysis, 04 April 2024. doi:10.5285/7fc9df8070d34cacab8092e45ef276f1. https://dx.doi.org/10.5285/7fc9df8070d34cacab8092e45ef276f1

Data Coverage

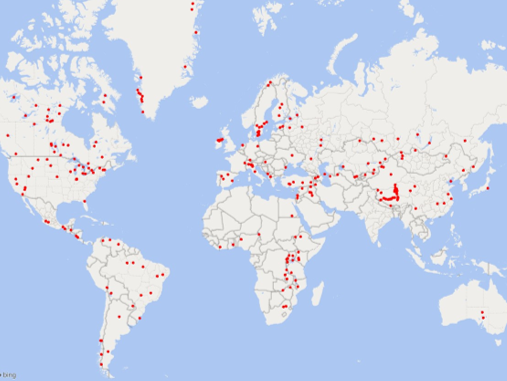

An important aspect of the project is to provide globally representative data coverage. Some regions have a much higher density of lakes than others. The observability of a water body from satellites largely depends on its size and shape, with the best results achieved in lakes with stretch of open water that are at least 2 km away from the nearest land. The current selection of 2024 target lakes is shown in the following figure.

The list of lakes, including their location and thematic ECV data availability for version 2.1.0 can be downloaded in csv format (lakescci_v2.1_metadata). The codes of availability are as follow: (0) data available at least 50% of the temporal coverage (1) data available less than 50% of the temporal coverage (2) lakes no covered by satellite instruments (3) lakes with bad quality measurements (4) lakes under analysis.

Data used for the generation of the lakes_cci products come from multiple instruments in different satellite missions. Therefore, the temporal resolution and spatial coverage are identical between the lake products. The figures below show the spatial coverage of Lake Water Level, Lake Water Extent and Lake Surface Water Temperature.

Specific observations:

The time interval of Lake Water Level and Lake Water Extent products is satellite dependent, ranging from daily for lakes observed by multiple missions/tracks to 27 days for lakes only observed by a single track of sentinel-3 instruments.

Lake Ice Cover data is available since 2001 for all lakes. However, only lakes that theoretically may form ice in winter are directly observed. A flag product is included to indicate which lakes have been inspected and which have been skipped.

Lake Water Leaving Reflectance data are available for all lakes since 2002. Among them, 48 lakes have complete datasets spanning from 2002 to 2022, while the remaining lakes have a gap in data between 2012 and 2016 due to a gap in usable satellite instruments.

Overall, data availability can be classified into five categories, visualised per product in the maps below:

• Data available in at least 50% percent of datums in the most recent 16 years – dark green dots
• Data available in fewer than 50% of datums in the most recent 16 years – light green dots
• No observations from relevant satellite instruments – black dots
• No data due to low observation or product quality – red dots
• Lakes being considered for future data releases but not presently included – orange dots
